Automatic Operation

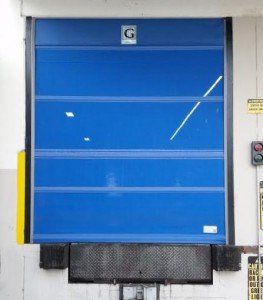

AUTOMATIC ROLL UP BUG BARRIER® Bug Screen/Bug Door

For distribution centers with medium to low movement this would tremendously be useful. Like our other screen entryways, this is a uniquely crafted to size and request to address your issues.

Color Options
Standard Stock Colors: Green, Blue, Black and Yellow

Nonstock Color: Upcharge per door determined by larger of width or height.

NOTE: All cost go up to the next size at 6”
– i.e. 8’6” would be 9’ price.
PURCHASE
FEATURES

The Automatic Roll Up Bug Barrier® bug screen, bug door is a custom manufactured to size industrial bug screen door, featuring: tight weave mesh, automatic reset system, and foam bottom or bottom profile to maintain positive contact with floor.

  • Max Size: 16’W X 16’H
  • Somfy in-tube motor, 4 amps, single phase, 120V, 52 RPM
  • Automatic reset framework
  • Malleable fiberglass wind bars and for high wind challenges, there is the aluminum hinge option.
  • Snaptite aluminum tracks conveniently come in 2”, 4”, and 6” depths take into consideration basic reclamation.
  • Four Convenient Mounting Styles: Header Mount, Wall Mount, E-Track, and Stand Off Mount
  • Options include: RC200 receiver, remote control, pull cords, and nema 4 control station.
  • One year limited warranty on parts and workmanship
Screen options are available for all your needs.

Bug Screen (Standard):
Material: .025” diameter vinyl-coated polyester
Weave: Plain Weave, 17 x 11 ends/in2
Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
Airflow: 35% Flow, 65% Restriction

Bird Screen:
Material: .025” diameter vinyl-coated polyester
Weave: Plain Weave, 12 x 7 ends/in2
Colors: Black only
Airflow: 75% Flow, 25% Restriction

Gnat Screen:
Material: .014” diameter vinyl-coated polyester
Weave: Plain Weave, 17 x 20 ends/in2
Colors: Black only
Airflow: 55% Flow, 45% Restriction
