Chain-Hoist
 Color Options
Standard Stock Colors: Green, Blue, Black and Yellow

Nonstock Color: Upcharge per door determined by larger of width or height.

NOTE: All cost go up to the next size at 6”
– i.e. 8’6” would be 9’ price.

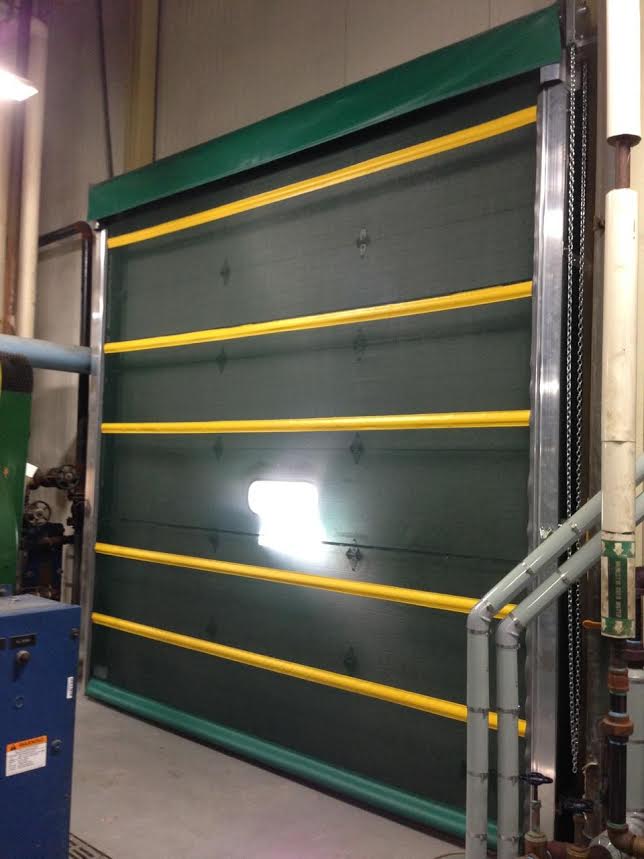

CHAIN HOIST UP BUG BARRIER® Industrial Bug Screen Door

Chain hoists bug doors are used to manually pull the bug screen door up and down and is the most cost effective avenue. Chain Hoist option is available for larger doors. Friction brake is supplied at 13’ and higher on chain hoist models. Chain hoist model features sealed bearing in mounting plate to assist rotation.

FEATURES
  • Chain hoist Max Size: 16’W X 16’H
  • Reset system
  • Breakaway using malleable wind bars
  • Accessible in four Mounting designs: Header Mount, Wall Mount, E-Track, and Stand Off Mount
  • Snaptite aluminum tracks obtainable in 2”, 4”, and 6” depths allow effortless restoration.
  • Chain hoist model features sealed bearing in mounting plate to facilitate revolution.
  • One year limited warranty on parts and workmanship
PURCHASE
Screen options are available for all your needs.

Bug Screen (Standard):
Material: .025” diameter vinyl-coated polyester
Weave: Plain Weave, 17 x 11 ends/in2
Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
Airflow: 35% Flow, 65% Restriction

Bird Screen:
Material: .025” diameter vinyl-coated polyester
Weave: Plain Weave, 12 x 7 ends/in2
Colors: Black only
Airflow: 75% Flow, 25% Restriction

Gnat Screen:
Material: .014” diameter vinyl-coated polyester
Weave: Plain Weave, 17 x 20 ends/in2
Colors: Black only
Airflow: 55% Flow, 45% Restriction
